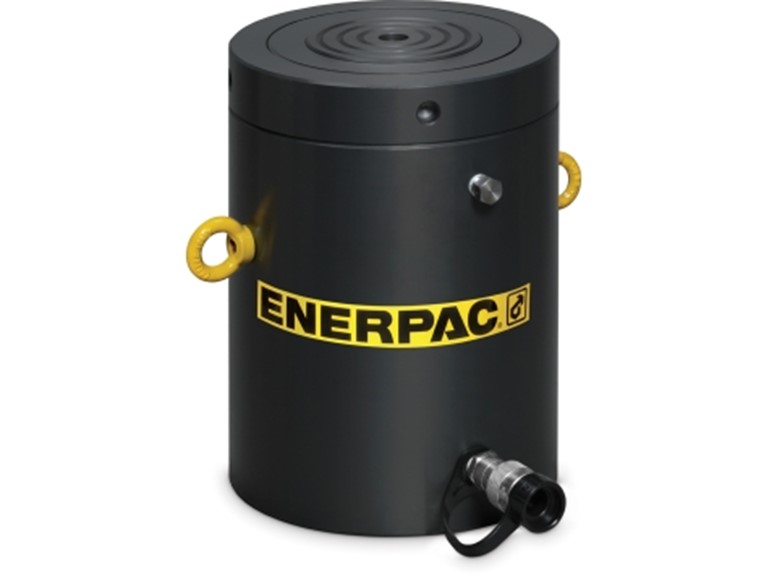

HCL-2508, 200mm Stroke, 399mm Collapsed Height, P.O.A

As Authorised Enerpac Distributors, Applied Torque Supply the Full Range of Industrial Tools from Enerpac including the HCL Series, Single Acting High Tonnage Lock Nut Cylinders.

The HCL Series feature a Lock Nut which provides positive and safe mechanical load holding. They are finished with a hardened surface to resist side loading and cyclic wear and an overflow port to prevent plunger blow out.

Please contact sales@appliedtorque.co.uk for further product details to request a quote or application advice

• Cylinder Capacity (Ton): 250
• Stroke (mm): 50 - 300
• Maximum Cylinder Capacity at 700 Bar (Ton): 259
• Cylinder Effective Area (cm²): 363.1
• Oil Capacity (cm³): 1518 - 10,892
• Collapsed Height (mm): 249 - 499
• Extended Height (mm): 299 - 799
• Weight (Kg): 119 - 240
• Please contact sales@appliedtorque.co.uk for further information
