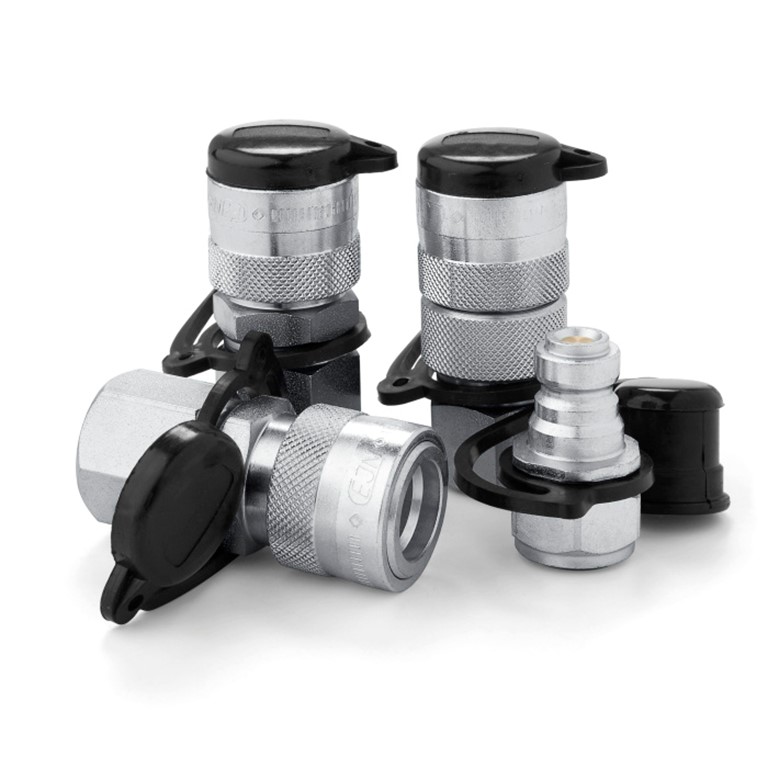

Series 117 - 14,500 PSI
Series 117 is a sister coupling to Series 115 and is used alongside it in applications where the systems must not, under any circumstances, be interconnected. The Series offer the same performance and qualities, but cannot be connected with one another, which makes them an unbeatable combination for rescue tools, ect. All exposed components are made of zinc-plated steel. Plastic dust caps are standard on both coupling and nipple.
Nominal Flow Diameter: 2.5mm (3/32")
Flow Capacity: 6.0 I/min (1.3 GPM UK)
Max. Working Pressure: 1000.0 bar
Min. Burst Pressure: 2600.0 bar
Temperature Range: -30°C - +100°C (-22°F - +212°F)
Material Coupling: Hardened, zinc chromate plated steel
Material Nipple: Hardened, zinc chromate plated steel
Material Seal: Nitrile (NBR) other sealing material on request
Comment: Avoid loading the nipple while disconnected. Dynamic load on nipple while disconnected may lead to seal damage
