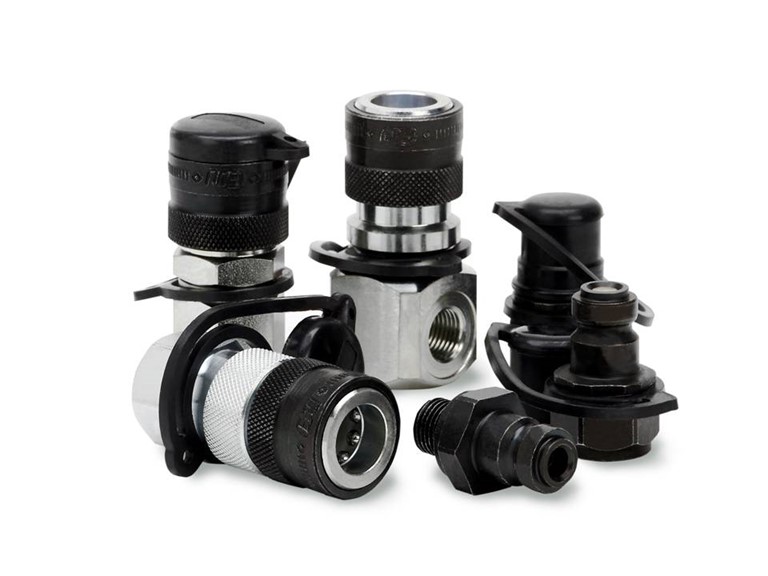

Series 116 - 21,750 PSI
Series 116 is available in both standard and Flat-Face designs. The series is a CEJN original with extremely small outside dimension. Non-drip connection and disconnection are standard on a CEJN High-Pressure range. All exposed components are made of zinc-plated steel. The coupling is also available in a design with a safety ring for the locking sleeve to prevent accidental disconnection. Plastic dust caps are standard on both coupling and nipple, dust caps of aluminum can be ordered separately. There is a coupling and nipple manufactured of stainless steel and chemically nickel-plated steel available for use in confined areas. The range is primarily recommended for cylinders, bolt tensioner tools, bearing pullers, etc.
Nominal Flow Diameter: 2.5mm (3/32")
Flow Capacity: 6.0 I/min (1.3 GPM UK)
Max. Working Pressure: 1,500 bar
Min. Burst Pressure: 3000.0 bar
Temperature Range: -30°C - +100°C (-22°F - +212°F)
Material Coupling: Hardened, zinc chromate plated steel
Material Nipple: Hardened, zinc chromate plated steel
Material Seal: Nitrile (NBR) other sealing material on request
Comment: Avoid loading the nipple while disconnected. Dynamic load on nipple while disconnected may lead to seal damage.
