5000NM

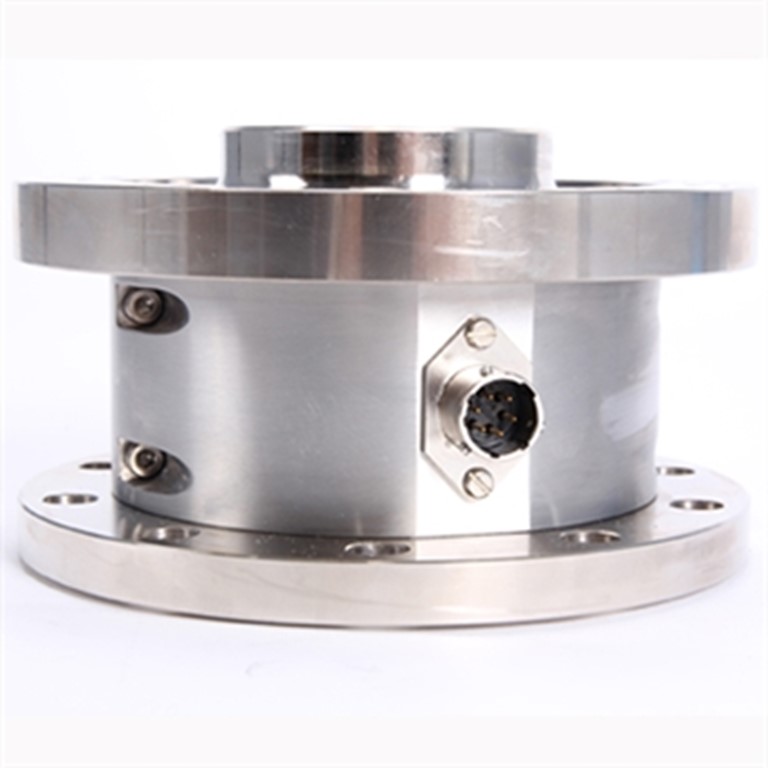

These Annular transducers are designed to fit directly to Norbar gearboxes in the 'Standard Series' (Pneutorque, Electrotorque and Handtorque) and will accurately measure the torque output via a display instrument.

Technical Specification

• Weight: 3.63 Kg
• Type: Standard
• Temp Range Operating: -10°C to +50°C
• Temp Range Storage: -20°C to +70°C
• Thermal Effect On Span: < +/- 0.03%/°C
• Thermal Effect On Zero: < +/- 0.01%/°C
• Max Torsion Of Capacity: 150% of rated torque
• Torsional Deflection: < 1°
• Fatigue: > 10 exp 7 cycles

Features

• Designed to ignore non torsional forces.
• Robust heat treated alloy steel torsion tube design.
• 'SMART' transducers have a built in memory circuit which contains essential information about the transducer. This information can be read by Norbar's 'Pro-Log' instrument meaning that when the transducer is connected, it is immediately recognised and ready for use. When ordering for a Pro-Log, use part code suffix '.LOG' (eg. 50659.LOG) if you require a torque units calibration certificate.
• 'SMART' transducers can also be used with many instruments not of Norbar manufacture. However, these will operate as normal ratio calibrated (mV/V) transducers - the 'SMART' data will not be read. For non Norbar instruments or for when a mV/V certificate is required, use part code suffix '.IND'.

Features

• Up to 5000 N·m (5000 lbf·ft) classified to BS7882:2008, typically better than Class 1 for the primary classification range (+/-0.5% of reading).

• Capacity: 5000NM
• Square Drive: 1 1/2"
• To Fit Tool: 7 (HT/PT)
• Dimension A: 83mm
• Dimension B: 144mm
• Dimension C: 125mm
