100,000lbf.ft

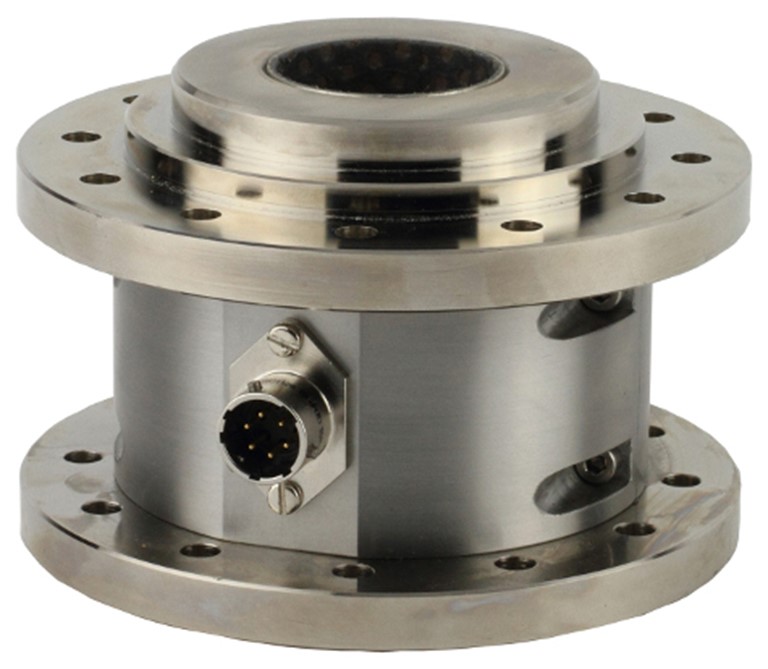

These Annular
transducers are designed to fit directly to Norbar gearboxes in the
'Standard Series' (Pneutorque, Electrotorque and Handtorque) and will
accurately measure the torque output via a display instrument.
- Technical Specification
- Weight: 30.8 Kg
- Type: Standard
- Temp Range Operating: -10°C to +50°C
- Temp Range Storage: -20°C to +70°C
- Thermal Effect On Span: < +/- 0.03%/°C
- Thermal Effect On Zero: < +/- 0.01%/°C
- Max Torsion Of Capacity: 150% of rated torque
- Torsional Deflection: < 1°
- Fatigue: > 10 exp 7 cycles
- Features
- Designed to ignore non torsional forces.
- Robust heat treated alloy steel torsion tube design.
- 'SMART' transducers have a built in memory circuit which contains essential information about the transducer. This information can be read by Norbar's 'Pro-Log' instrument meaning that when the transducer is connected, it is immediately recognised and ready for use. When ordering for a Pro-Log, use part code suffix '.LOG' (eg. 50659.LOG) if you require a torque units calibration certificate.
- 'SMART' transducers can also be used with many instruments not of Norbar manufacture. However, these will operate as normal ratio calibrated (mV/V) transducers - the 'SMART' data will not be read. For non Norbar instruments or for when a mV/V certificate is required, use part code suffix '.IND'.
- Features
- Up to 5000 N·m (5000 lbf·ft) classified to BS7882:2008, typically better than Class 1 for the primary classification range (+/-0.5% of reading).
- Capacity: 100,000lbf.ft
- Square Drive: 3 1/2"
- To Fit Tool: 14
- Dimensions A: 126mm
- Dimensions B: 315mm
- Dimensions C: 290mm
