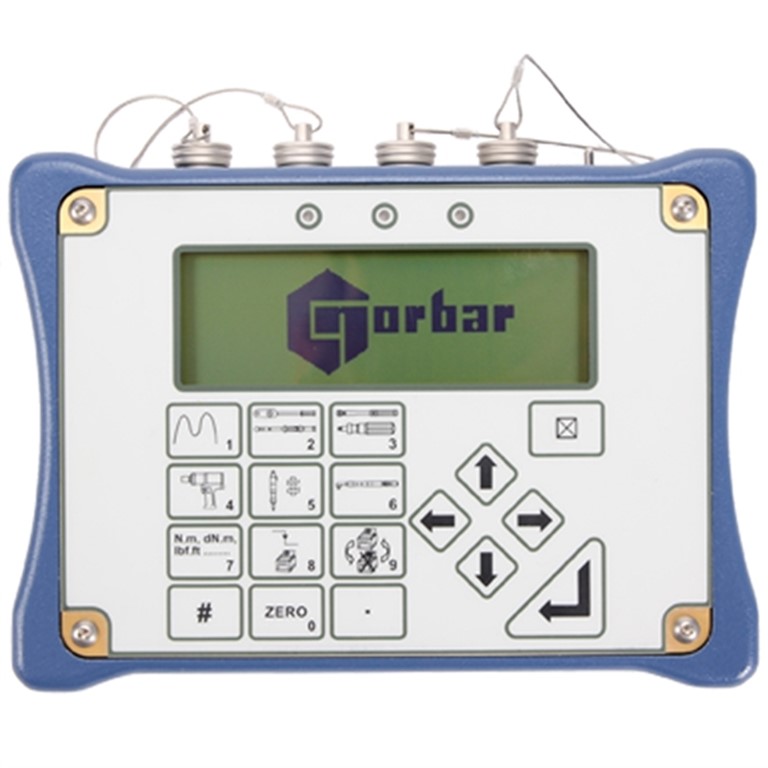

Harsh Environment Torque Measuring Instrument

The Harsh Environment Range is a range of measurement and calibration equipment that has been tested to conform with EN 60529: 1992. Rated to IP65/IP67 the products are aimed specifically for use in harsh environments. Particularly suited for use in the Offshore and Power Generation industries, the combination of high quality components, sound design and many years field experience allow calibration and control in previously restricted areas. The IP65/IP67 rating gives the product protection against dust ingression, pressurised water jet and complete water immersion to a 1 metre depth for a 30 minute period.

Features

• IP65/IP67 rated.
• Stainless steel transducer design with 'SMART' intelligence.
• Bi-Direction calibration for both instrument and transducer.
• Class 1 Accuracy over the 'Primary' classification range (+/-0.5% of reading from 20 to 100% of full scale).
• Battery Power use in harsh environments (mains supply for charging).
• All features are in common with the TST and TTT.
• Please contact Norbar for full details of available transducers.

• IP65/IP67 rated.
• Bi-Direction calibration for both instrument and transducer
• Class 1 Accuracy over the 'Primary' classification range (+/-0.5% of reading from 20 to 100% of full scale).
• Pictorial panel allows easy mode selection for the 6 modes of operation
• 13 Torque units, plus the ability to specify USER measurement units up to a maximum of 6 characters
• 5 digit resolution for all Norbar transducers
• Operational from internal rechargeable battery or a.c. supply
• Pulse count feature in Impulse Tool mode and Clutch Tool mode
• User selectable frequency response for each mode of operation
• Password protection of all selectable features. The instrument can be issued to an operator with only the required modes of operation and units of measurement enabled.
• Price: P.O.A
