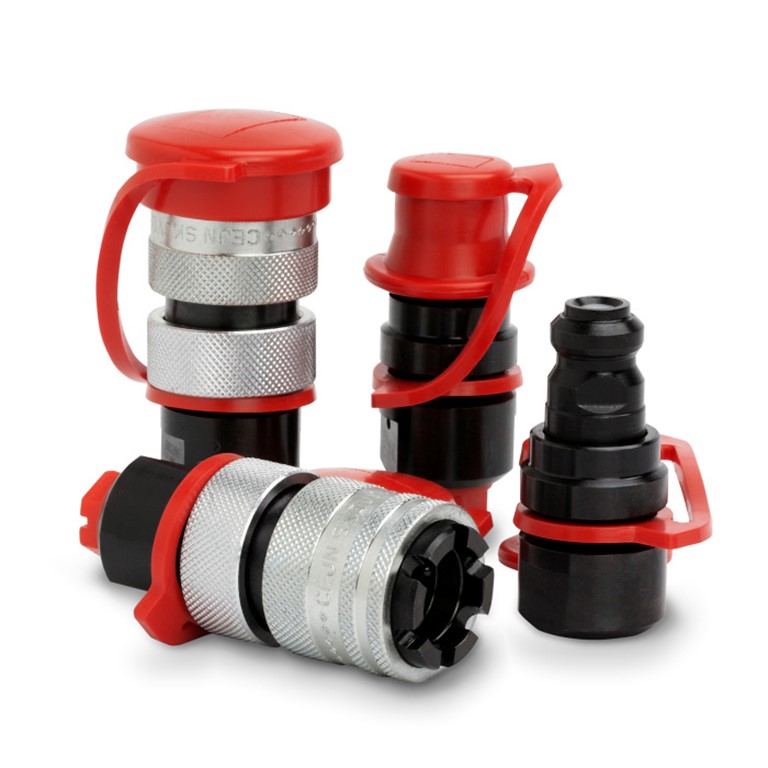

Series 135 - 43,500 PSI
Series 135 is a CEJN original for extremely high working pressure, 43,500 PSI. The Series also withstands pressure up to 43,500 PSI while disconnected (applies to the coupling and nipple). Non-drip connection and disconnection are standard on the CEJN High-Pressure range. The coupling also has a safety ring for the locking sleeve to prevent accidental disconnection. Plastic dust caps are standard on both coupling and nipple. Swiveling can cause wear damage over time why the nipple is available in both swivel and non-swivel designs. Each coupling and nipple are pressure tested up to full working pressure before delivery. The Series makes it possible to connect pumps and accessories faster, safer and more conveniently, even at extreme pressure. The Series is in the first place recommended for bearing pullers, splitters and hydraulic test installations.
TECHNICAL DATA
Nominal flow diameter: 2.5mm (3/32")
Flow capacity: 4.6I/min (1.0 GPM UK)
Max. working pressure: 3000.0 bar
Min. burst pressure: 6000.0 bar
Temperature range: -20°C - +80°C (-4°F - +176°F)
Material coupling: Hardened balck finish steel
Material nipple: Hardened black finish steel
Material seal: Nitrile (NBR) other sealing material on request
Max. rec. pressure cycles: According to nipple design
