Series 125 - 29,000 PSI

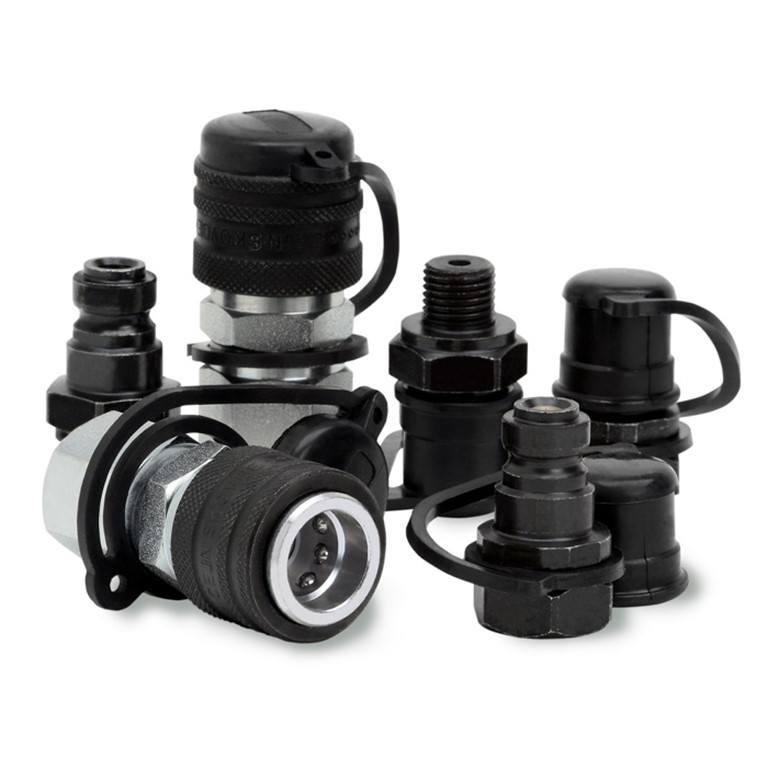

Series 125 is a CEJN original with extremely small outside dimensions and a patended seal design. Non-drip connection and disconnection are standard on the CEJN High-Pressure range. All exposed components are made of zinc-plated steel. Plastic dust caps are standard on both coupling and nipple. The range is primarily rocommended for bolt tensioners, bearing pullers, ect.
TECHNICAL DATA
Nominal flow diameter: 2.5mm (3/32")
Flow capacity: 5.8 I/min (1.3 GPM UK)
Max. working pressure: 2000.0 bar
Min. burst pressure: 4000.0 bar
Temperature range: -30°C - +100°C (-22°F - +212°F)
Material coupling: Hardened, zinc chromate plated steel
Material nipple: Hardened, zinc chromate plated steel
Material seal: Nitrile (NBR) other sealing material on request
Comment: Avoid loading the nipple while disconnected. Dynamic load on nipple while disconnected may lead to seal damage.
