Cejn Series 115 - Flat Face

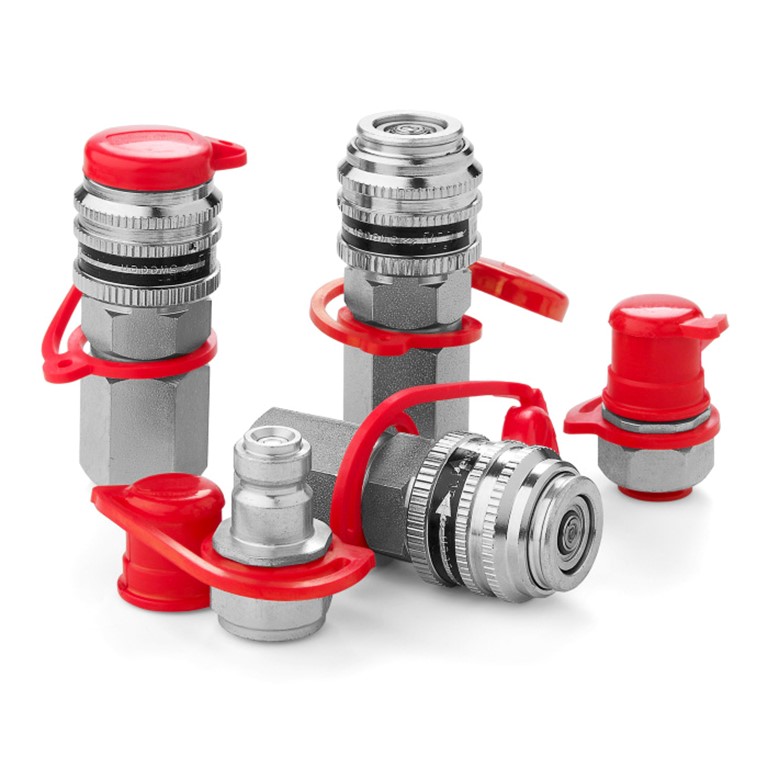

CEJN Series 115 in a Flat-Face design has a working pressure of 80 MPa. The Flat-Face coupling has a lightweight design with an aluminum back-part, which makes the Series well adapted for applications where weight has a significance. Series 115 Flat-Face is primarily recommended for rescue equipment, torque tools and cable cutters. The series 115 is also available in a standard version.
Nominal Flow Diameter: 2.5mm (3/32")
Flow Capacity: 5.3 I/min (1.2 GPM UK)
Max. Working Pressure: 800.0 bar
Min. Burst Pressure: 2800.0 MPa
Temprature Range: -30
°C - +100
°C (-22
°F - +212
°F)
Material Coupling: Hardened, Zinc chromate plated steel
Material Nipple: Hardened, Zinc chromate plated steel
Comment: Avoid loading the nipple while disconnected. Dynamic load on nipple while disconnected may lead to seal damage.
