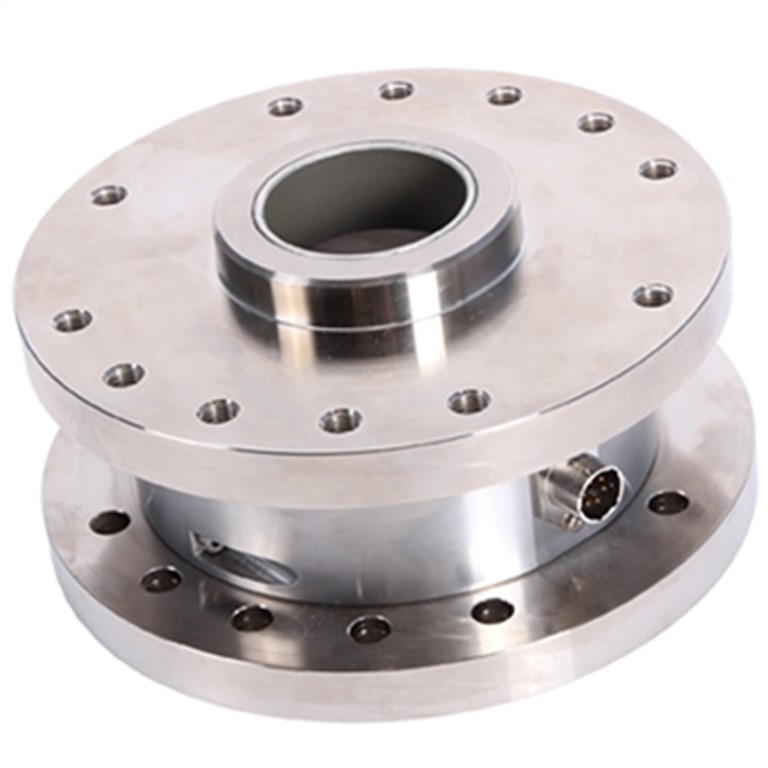

Annular Torque Transducer

10,000 Nm

These Annular transducers are designed to fit directly to Norbar gearboxes in the 'Standard Series' (Pneutorque, Electrotorque and Handtorque) and will accurately measure the torque output via a display instrument.

Technical Specification

Weight: 6.26 Kg

Type: Standard

Temp Range Operating: -10°C to +50°C

Temp Range Storage: -20°C to +70°C

Thermal Effect On Span: < +/- 0.03%/°C

Thermal Effect On Zero: < +/- 0.01%/°C

Max Torsion Of Capacity: 150% of rated torque

Torsional Deflection: < 1°

Fatigue: > 10 exp 7 cycles

Features

Designed to ignore non torsional forces.

Robust heat treated alloy steel torsion tube design.

'SMART' transducers have a built in memory circuit which contains essential information about the transducer. This information can be read by Norbar's 'Pro-Log' instrument meaning that when the transducer is connected, it is immediately recognised and ready for use. When ordering for a Pro-Log, use part code suffix '.LOG' (eg. 50659.LOG) if you require a torque units calibration certificate.

'SMART' transducers can also be used with many instruments not of Norbar manufacture. However, these will operate as normal ratio calibrated (mV/V) transducers - the 'SMART' data will not be read. For non Norbar instruments or for when a mV/V certificate is required, use part code suffix '.IND'.

Features

Up to 5000 N·m (5000 lbf·ft) classified to BS7882:2008, typically better than Class 1 for the primary classification range (+/-0.5% of reading).

• Capacity: 10,000Nm
• Square Drive: 1 1/2"
• To Fit Tool: 9
• Dimension A: 90mm
• Dimension B: 184mm
• Dimension C: 152.40mm
