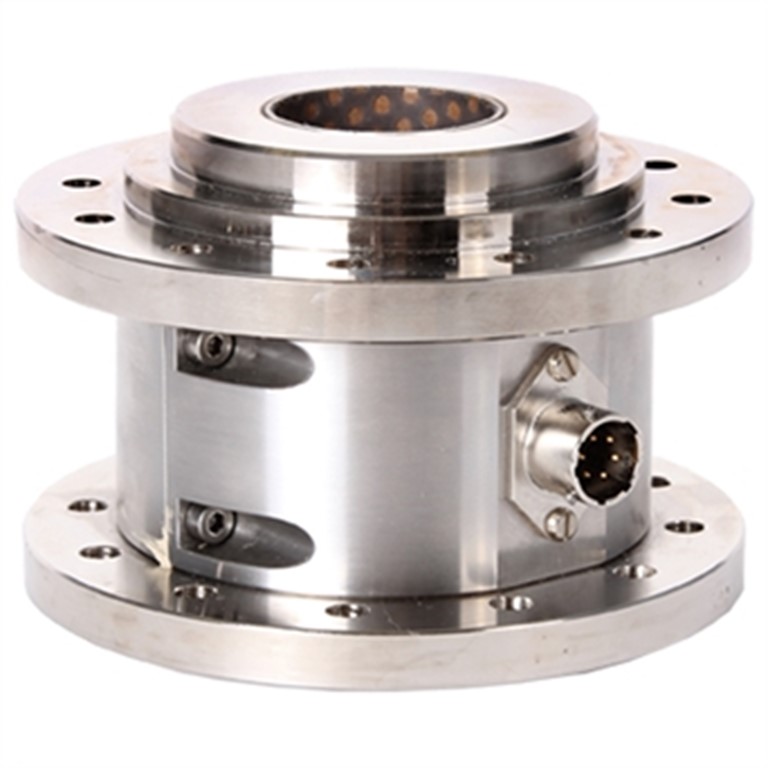

Annular Transducers - Imperial Calibration 2500.lbf.ft

These Annular transducers are designed to fit directly to Norbar gearboxes in the 'Standard Series' (Pneutorque, Electrotorque and Handtorque) and will accurately measure the torque output via a display instrument.

Technical Specification

Weight: 2.6 Kg

Type: Standard

Temp Range Operating: -10°C to +50°C

Temp Range Storage: -20°C to +70°C

Thermal Effect On Span: < +/- 0.03%/°C

Thermal Effect On Zero: < +/- 0.01%/°C

Max Torsion Of Capacity: 150% of rated torque

Torsional Deflection: < 1°

Fatigue: > 10 exp 7 cycles

Features

Designed to ignore non torsional forces.

Robust heat treated alloy steel torsion tube design.

'SMART' transducers have a built in memory circuit which contains essential information about the transducer. This information can be read by Norbar's 'Pro-Log' instrument meaning that when the transducer is connected, it is immediately recognised and ready for use. When ordering for a Pro-Log, use part code suffix '.LOG' (eg. 50659.LOG) if you require a torque units calibration certificate.

'SMART' transducers can also be used with many instruments not of Norbar manufacture. However, these will operate as normal ratio calibrated (mV/V) transducers - the 'SMART' data will not be read. For non Norbar instruments or for when a mV/V certificate is required, use part code suffix '.IND'.

Features

Up to 5000 N·m (5000 lbf·ft) classified to BS7882:2008, typically better than Class 1 for the primary classification range (+/-0.5% of reading).

• Capacity: 2500lbf.ft
• Square Drive: 1 1/2"
• To Fit Tool: 6
• Dimensions A: 79.5mm
• Dimensions B: 119mm
• Dimensions C: 99.06mm
• Product Number: 50650.LOG
